COMPASS 2
2855.3030.31
COMPASS 2 -
2855.3030.31

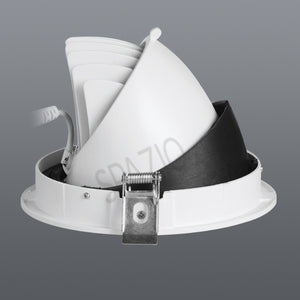

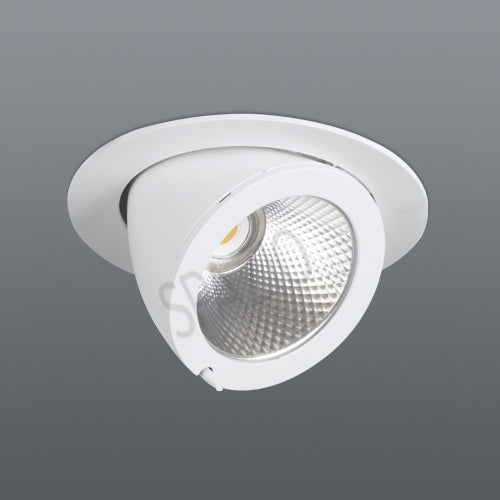

LED downlight with die-cast aluminium body,
tempered glass diffuser, 60° reflector, 40° tilt.
Includes LED driver and cabtyre.
| Colour: | WHITE | |
| Material: | DIE-CAST ALUMINIUM, TEMPERED GLASS | |
| Colour Temp: |
3000K | |
| Dimensions: | Diam.155 X H.110 | |
| Lumen: | 3900Lm | |
| CRI: | 90 | |
| IP Rating: | 20 | |
| Wattage: | 30W | |
| Voltage: | 230V | |
| Lamp base: | LED | |
| Cut out: | Ø.145 | |
| Coastal Reef Quality: | ||
| Class of insulation: | II | |
| Carton Quantities: | 0 | |
| Chip warranty in years: | 5 | |
| Lifespan in hours: | 50000 |
DOWNLOADS:
 |
- Catalogue Page - Technical Drawing - Instruction Manual - Photometric Data / IES File |
LED downlight with die-cast aluminium body, tempered glass diffuser, 60° reflector, 40° tilt. Includes LED driver and cabtyre.
| Colour: | WHITE | |
| Material: | DIE-CAST ALUMINIUM, TEMPERED GLASS | |
|
Colour Temp: |
4000K | |
| Dimensions: | Diam.155 X H.110 | |
| Raw Lumen: | ||
| CRI: | 90 | |
| IP Rating: | 20 | |
| Wattage: | 30W | |
| Voltage: | 230V | |
| Lamp base: | LED | |
| Cut out: | ||
| Coastal / Inland: | ||
| Class of insulation: | II | |
| Carton Quantities: | 0 | |
| Lifespan in hours: | 50000 | |
| Dimmable / Non-Dimmable: | ||
| Body warranty in years: | ||
| Ic warranty in years: | 5 | |
| Surge protection: |
